Technical Parameter
|
Technical items |
Parameters |
Remarks |
|
Built-in compressor |
9.7 KW |
|
|
Refrigerant gas |
Standard R507 |
|
|
Content of the refrigerant |
3.2 Kg (7.06 LB) |
|
|
Condensing medium |
Water |
|
|
Mixing motor |
5.5 KW |
|
|
Hybrid motor |
0.75 KW x 2 |
|
|
Total power |
16.6 KW |
|
|
Air consumption |
1 m3/h |
|
|
Compressed air consumption |
6 bar |
|
|
Compressed air mass, maximum moisture content |
2.5 g/m³ |
|
|
Condensed water consumption: water in water pipe |
≤+20℃ |
3000 L/h |
|
Condensed water inlet connection |
1" |
|
|
Condensed water outlet connection |
1" |
|
|
Mixture feed tube, outside |
25 mm |
1" clamp |
|
Ice cream discharging tube, outside |
38 mm |
1 1/2" clamp |
|
Maximum overrun ratio |
100% |
Feature
- The maximum production capacity is 600 L/h.
- The N600 continuous ice cream freezer adopts the plunger pump, and choose Freon as the refrigerant.
- The N600 continuous ice cream freezer has a cold source of its own.
- Using gear pumps imported from Europe as the ice cream ingredients mixing pumps. The power of mixing pumps uses the frequency control.
Advantage
1. Compared with intermittent production, the N600 continuous ice cream freezer's effective, reasonable and continuous production can reduce the cost and ensure the stability of the fluid.
2. While with low cost, the N600 freezer has a high efficiency at the same time.
3. Because of the low price but the high quality, the cost-performance of the N600 continuous ice cream freezer is extremely high.
Application
- It is suitable for manufacturers who need 600 liters of ice cream per hour.
- It is suitable for manufacturers who need to automatically produce ice cream without manual production.
- It is suitable for manufacturers who need low-cost but high-quality ice cream production.
Packing
The freezer, which is designed as a self-sealing machine, is usually packaged in a wooden box and fixed on the baseboard. The unpacking operation should be processed near the installation site.
After receiving, you should move the wooden box containing the N600 ice cream refrigerator to the operating location. The transmission of the refrigerator can be performed by a forklift or crane (placing the crane's lifting structure under the bottom plate).
The wooden box can be transported by forklift (1) or crane (2).
FAQ

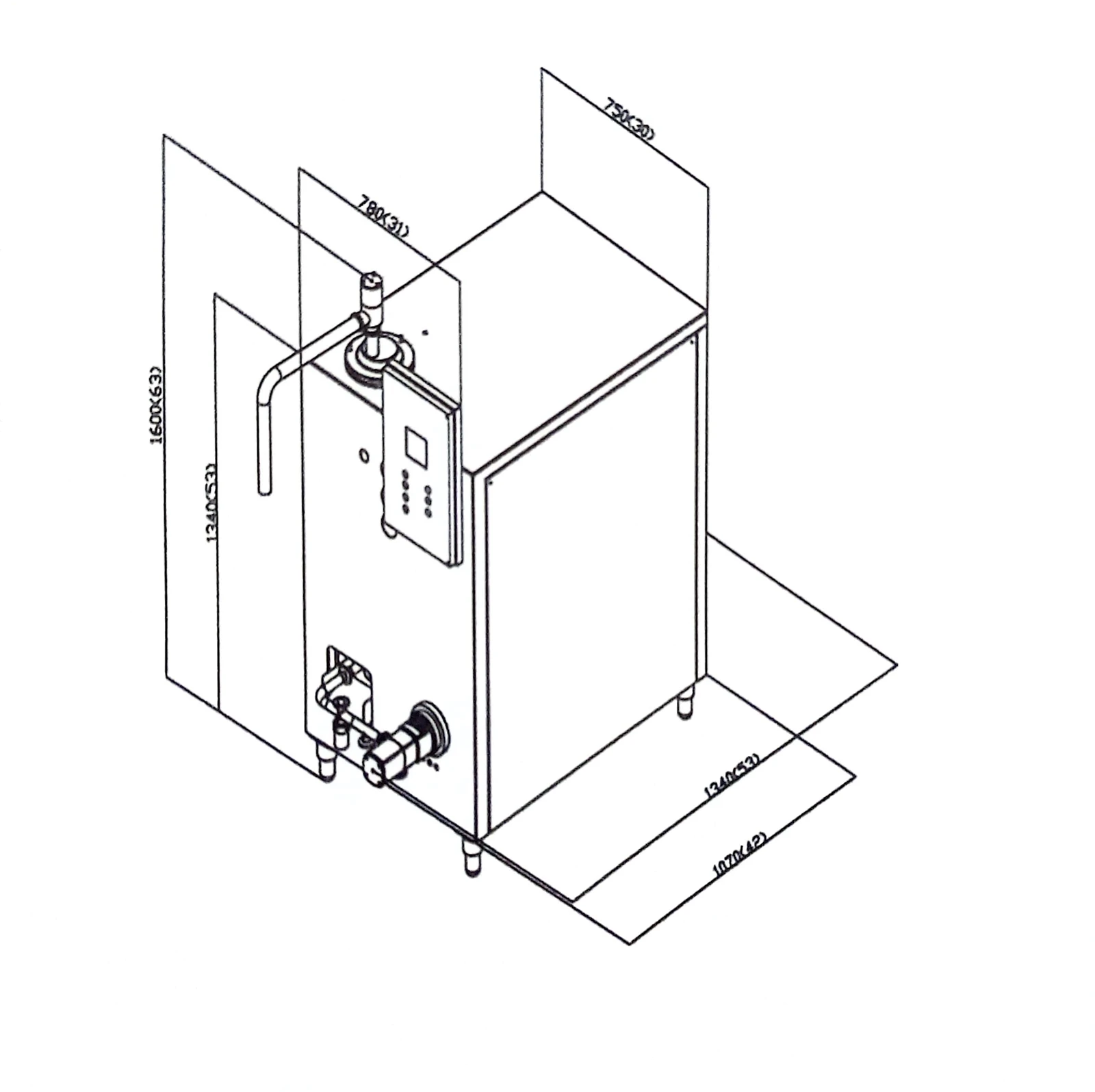

Q: What is the size of the N600 continuous ice cream freezer?
Q: How should the N600 continuous ice cream freezer be installed?
Q: How should the N600 continuous ice cream freezer be maintained?
