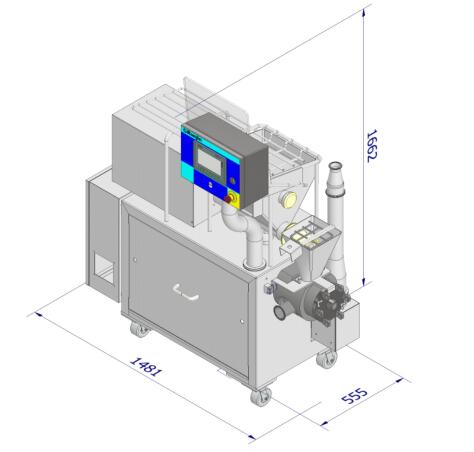

WF4000 Ice Cream Fruit Feeder

WF4000 Ice Cream Fruit Feeder

Quickfacts

This unit is designed for continuous and accurate injection of additional ingredients into ice cream products and other liquid and viscous products.
CAPACITY
Fruit Feeder WF4000 model:
  • Throughput of ingredients: 16 to 400 litres/hour
  • Product flow: 160 to 4,000 litres/hour
  • Maximum ingredient size: 12 mm
APPLICATIONS
The unit handles ice cream products –and other liquid and viscous products – with added fruit pieces, nuts, candies and more.
Send Inquiry
Description
Features Options How Does it Work? Product Leaflet Services

Features

  • Hopper
  • Hopper grid
  • Hopper lid
  • Choice of augers
  • Lamella pump
  • Compact design
Hopper

Gentle handling of sensitive products

Several smart features enable gentle handling of sensitive and brittle inclusions such as cookie pieces and fruit pieces. The agitator rotates and the auger is shaped to enable gradual filling and even takeout. This minimizes circulation inside the hopper and prevents clumps from forming. A grooved outlet pipe releases ingredients evenly into the product pump inlet funnel.

Hopper grid

Prevent accidents when filling ingredients into hopper

The hopper safety grid is designed according to the latest safety standards to secure operator safety. The holes in the grid are large enough for ingredients to be loaded in but narrow enough to protect operators.

Hopper lid

Enables easy access and flexible line layout

The hopper lid opens backwards, enabling ingredients to be added from the sides and front at a low re-feeding height. This provides easy access for operators to refill the hopper if required. Two dosers may be placed beside one another without obstructing the refill process.

Choice of augers

Ensure highly accurate dosing

As the auger turns, the ingredients are transferred at a steady dosing rate from the hopper to the pump. This unit can be fitted with a variety of different augers, and they are easy to change. This means your dosing is always optimized for the product type, size and required capacity range.

Lamella pump

Gentle handling keeps ingredients intact

Ingredients are fed into the lamella pump and the cavities between the lamellas carry the inclusions into the pressurized product zone. The pump is designed to transfer the ingredients gently into the pressurized base product, without breaking or damaging them, and without incorporating any air into the mixture.

Compact design

Maximizes space efficiency

Thanks to its small footprint , the unit can be used in almost all production plants, even where space is limited.



Options

  • Magnetic grid
  • Insulated hopper
  • Automatic CIP front cover
  • Loss-in-weight control system
Magnetic grid

Minimizes food safety hazards

Placed on top of the hopper, the magnetic grid is designed to trap any foreign objects made of metal, which may have found their way into the ingredients packages. Although this is a rare occurrence, an error can have dramatic consequences, so it is worth safeguarding your production with this simple option.

Insulated hopper

Maintains the inclusions'shape

Soft inclusions such as fruit pieces often benefit from being injected cooled or pre-frozen. This not only maintains their natural shape, but also makes them easier to integrate into the ice cream – without causing it to melt.

Automatic CIP front cover

Minimizes the risk of damage to the pump

For best results when cleaning, all the tight tolerances inside the lamella pump should be released to enable thorough flush through. This is achieved with an automatic CIP front cover inside the pump's closed system. This type of cover also guarantees the right pressure during operation, and thereby reduces wear and tear of pump parts during both operation and cleaning.

Loss-in-weight control system

Accurate and repeatable dosing

The loss-in-weight control system, combined with the correct auger selection, enables extremely accurate dosing – typically achieving a standard deviation dosing rate of less than 3%, depending on the size and type of inclusion.







HOW IT WORKS

how-it-works

HOW IT WORKS

The ingredient doser is a self-contained unit that comes ready to be connected to a power outlet and a supply of ice cream or other base product. The ingredients – which may be fruit, nuts, candies or similar – are carried out of the hopper by a helical auger, and fed into a lamella pump, which then transfers them into the base product. The mixture passes into the inline mixer where it is stirred to ensure an even distribution of ingredients. Then the mixed product exits the doser via the outlet.
