FF4000A Ice Cream Fruit Feeder

FF4000A Ice Cream Fruit Feeder

Runchen©Fruit™-FF4000A Ice Cream Fruit Feeder is a fruit feeder can put the dried fruit granules, sugar granules or fluid granule into the ice cream. (the device is not suitable for viscous materials, as well as those easily absorbing moisture or easy to be adsorbed).

Product Introduction
Technical Parameter



Items

Parameters

Remarks

Feeding screw motor

0.75 KW



Hopper mixing motor

0.75KW



Hybrid motor

1.1 KW

Vane pump motor

2.2 KW



Transformer

0.15 KW



Total power

5 KW



Feed pipe, outside

51 mm

2" clamp

Discharge pipe, outside

51 mm

4" clamp



Feature



  • The FF4000A ice cream fruit feeder can produce 15-1500 L/hour ingredients every batch.
  • The FF4000A ice cream fruit feeder has a capacity of 4000L/h.
  • The FF4000A ice cream fruit feeder has an automatic weighing system.



Advantage



  1. The automatic weighing system can prevent the excess consumption of expensive ingredients.
  2. The FF4000A ice cream fruit feeder has high durability and reliability.
  3. The FF4000A ice cream fruit feeder is equipped with a mixer to further mix ice cream slurry and fruit granules evenly.



Application



  1. It is suitable for manufacturers who need a fruit feeder with an automatic weighing system.
  2. It is suitable for mixing sugar granules into the ice cream.
  3. It is suitable for mixing granules and the ice cream fully.



FAQ

Q: What is the power consumption of the FF4000A ice cream fruit feeder?

A: The total power consumption of the FF4000A ice cream fruit feeder is 5KW.

Q: What is the size of the FF4000A ice cream fruit feeder?

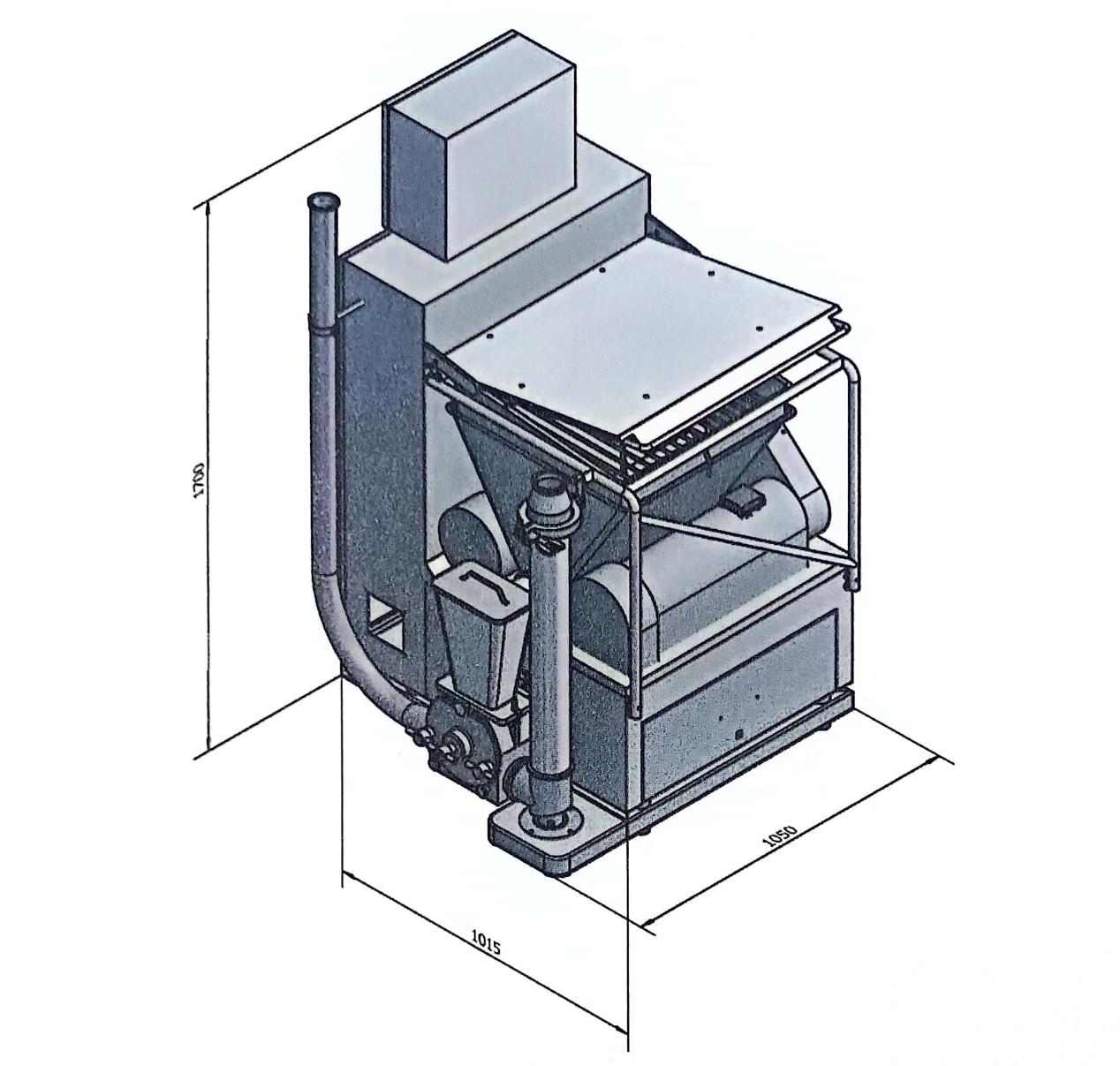

A: The FF4000A ice cream fruit feeder has a length of 1050mm, a width of 1015mm, a height of 1700mm, a net weight of 520KG(1146LB), a gross weight of 600KG(1323LB), and a shipping volume of 3.7m³.

FF4000A Ice Cream Fruit



Q: Can the mixing speed of the fruit feeder be controlled?

A: The speed of the quantitative screw can be adjusted between 0% and 100%.

automatic weighing system


It's important that the equipment quantitative feeds are accurate for keeping the consistent quality of products that can prevent the excess consumption of expensive ingredients. The advanced weighing system can continuously record the weight of ingredients and adjust the speed of the feeding screw to ensure that the correct ingredient flow can be conveyed into products. The data in weighing units is input to PLC and the weighing system can calculate the weight loss within a given time and use the data to calculate flows. The difference between the preset flow data and the actual flow data will result that the speed of feeding screw will be adjusted automatically until actual flows are equal to preset flows.
